Authenticate GitHub's Webhooks API using Elixir's Plug

This post was originally published on my previous blog jer-k.github.io

Published on 2019-08-17

Recently, I started working on a new side project in Elixir and I think I've finally found something I'm going to stick with! In the past I would either build something like a simple TODO app and not get far enough into the language or I would pick a gigantic idea and get nowhere due to how daunting it was. However, one of my co-workers recently implemented a feature through the GitHub Webhooks API where we are required to add a label to our Pull Requests and a Slack channel is notified that the PR is ready to be reviewed. I decided that I wanted to rebuild it in Elixir and in doing so, be able to write about what I learn along the way; this is the first in what I hope to be many posts about my journey. With that said, if you're unfamiliar with the webhooks API or how to set it up on your repository, please read the link above because we're jumping right in!

We're going to create a Plug that will read the secret from the webhooks API and halt the connection if the request does not authenticate. We'll start off with a basic outline of what we want to do.

defmodule MyApp.Plugs.GithubAuthentication do
  import Plug.Conn

  def init(_params) do
  end

  def call(conn, _params) do
    with {:ok, digest} <- get_signature_digest(conn),
           {:ok, secret} <- get_secret(),
           {:ok} <- valid_request?(digest, secret, conn)
    do
      conn
    else
      _ -> conn |> send_resp(401, "Couldn't Authenticate") |> halt()
    end
  end

  defp get_signature_digest(conn) do
  end

  defp get_secret do
  end

  defp valid_request?(digest, secret, conn) do
  end
end

defmodule MyApp.Plugs.GithubAuthentication do
  import Plug.Conn

  def init(_params) do
  end

  def call(conn, _params) do
    with {:ok, digest} <- get_signature_digest(conn),
           {:ok, secret} <- get_secret(),
           {:ok} <- valid_request?(digest, secret, conn)
    do
      conn
    else
      _ -> conn |> send_resp(401, "Couldn't Authenticate") |> halt()
    end
  end

  defp get_signature_digest(conn) do
  end

  defp get_secret do
  end

  defp valid_request?(digest, secret, conn) do
  end
end

The first thing I want to note is that I never understood with until now. When it was introduced, the syntax threw me off and since I wasn't writing much Elixir at the time, it never clicked. However, I'm happy that I understand it now because it is the perfect construct for what we want to do.

First, we want to get the signature of the request that GitHub has sent. If we look at the Payloads section of the API docs we'll see that GitHub adds a X-Hub-Signature header to each request. It is described as

The HMAC hex digest of the response body. This header will be sent if the webhook is configured with a secret. The HMAC hex digest is generated using the sha1 hash function and the secret as the HMAC key.

which we will come back to a little later when we need to build the digest ourselves, but for now let's fill in get_signature_digest to grab the header from the request. Plug has a function to help us do this get_req_header/2 so let's use that.

defp get_signature_digest(conn) do
  case get_req_header(conn, "x-hub-signature") do
    ["sha1=" <> digest] -> {:ok, digest}
    _ -> {:error, "No Github Signature Found"}
  end
end

defp get_signature_digest(conn) do
  case get_req_header(conn, "x-hub-signature") do
    ["sha1=" <> digest] -> {:ok, digest}
    _ -> {:error, "No Github Signature Found"}
  end
end

If we look at the Example delivery from GitHub, it shows

X-Hub-Signature: sha1=7d38cdd689735b008b3c702edd92eea23791c5f6

X-Hub-Signature: sha1=7d38cdd689735b008b3c702edd92eea23791c5f6

so what we want to do is pattern match on the header value to ensure it is formed correctly with sha1= preceding the digest and then return the digest.

Next we need to know the secret that was used to create the digest. For this example I'm going to use Application.get_env.

defp get_secret
  Application.get_env(:my_app, :github_secret)
end

defp get_secret
  Application.get_env(:my_app, :github_secret)
end

However, this is a very basic use case that will work if we only have one a single key to handle, but what if we were building an application that handled requests from many repositories? That is what the project I'm working on will do so I need to be able to find the secrets based on the repository sending the event. While I'm not going to cover that implementation here, what it means is that I need to have the parsed request body available at the time get_secret is called; I would probably have a get_secret/1 which took in the repository url. For now let's continue on, but we'll see why needing access to the parsed and raw response bodies matter.

Now that we have both the digest and the secret in hand, we need to rebuild the digest from the request to see if we have a match. Looking back at the description of the X-Hub-Signature, it starts off with The HMAC hex digest of the response body. What we need is access not to the parsed response body, but to the raw response body. Thankfully this exact type of functionality was added to Plug in the form of a Custom body reader; we just need to copy the docs into our application!

defmodule MyApp.Plugs.CacheBodyReader do
  def read_body(conn, opts) do
    {:ok, body, conn} = Plug.Conn.read_body(conn, opts)
    conn = update_in(conn.assigns[:raw_body], &[body | (&1 || [])])
    {:ok, body, conn}
  end
end

defmodule MyApp.Plugs.CacheBodyReader do
  def read_body(conn, opts) do
    {:ok, body, conn} = Plug.Conn.read_body(conn, opts)
    conn = update_in(conn.assigns[:raw_body], &[body | (&1 || [])])
    {:ok, body, conn}
  end
end

We'll come back to where to put this code when we wrap up, but for now we know that conn.assigns.raw_body exists so let's put it to use in valid_request?.

defp valid_request?(digest, secret, conn) do
  hmac = :crypto.hmac(:sha, secret, conn.assigns.raw_body) |> Base.encode16(case: :lower)
  if Plug.Crypto.secure_compare(digest, hmac), do: {:ok}, else: {:error}
end

defp valid_request?(digest, secret, conn) do
  hmac = :crypto.hmac(:sha, secret, conn.assigns.raw_body) |> Base.encode16(case: :lower)
  if Plug.Crypto.secure_compare(digest, hmac), do: {:ok}, else: {:error}
end

We generate the hmac using Erlang's crypto library and then encode it to lowercase to ensure it matches the form of Github's signature. At the very bottom of GitHub's Securing your webhooks they note

Using a plain == operator is not advised. A method like secure_compare performs a "constant time" string comparison, which renders it safe from certain timing attacks against regular equality operators.

so to compare the two digests, we'll use Plug.Crypto.secure_compare. The entire Plug now looks like this.

defmodule MyApp.Plugs.GithubAuthentication do
  import Plug.Conn

  def init(_params) do
  end

  def call(conn, _params) do
    with {:ok, digest} <- get_signature_digest(conn),
         {:ok, secret} <- get_secret(),
         {:ok} <- valid_request?(digest, secret, conn)
    do
      conn
    else
      _ -> conn |> send_resp(401, "Couldn't Authenticate") |> halt()
    end
  end

  defp get_signature_digest(conn) do
    case get_req_header(conn, "x-hub-signature") do
      ["sha1=" <> digest] -> {:ok, digest}
      _ -> {:error, "No Github Signature Found"}
    end
  end

  defp get_secret
    Application.get_env(:my_app, :github_secret)
  end

  defp valid_request?(digest, secret, conn) do
    hmac = :crypto.hmac(:sha, secret, conn.assigns.raw_body) |> Base.encode16(case: :lower)
    if Plug.Crypto.secure_compare(digest, hmac), do: {:ok}, else: {:error}
  end
end

defmodule MyApp.Plugs.GithubAuthentication do
  import Plug.Conn

  def init(_params) do
  end

  def call(conn, _params) do
    with {:ok, digest} <- get_signature_digest(conn),
         {:ok, secret} <- get_secret(),
         {:ok} <- valid_request?(digest, secret, conn)
    do
      conn
    else
      _ -> conn |> send_resp(401, "Couldn't Authenticate") |> halt()
    end
  end

  defp get_signature_digest(conn) do
    case get_req_header(conn, "x-hub-signature") do
      ["sha1=" <> digest] -> {:ok, digest}
      _ -> {:error, "No Github Signature Found"}
    end
  end

  defp get_secret
    Application.get_env(:my_app, :github_secret)
  end

  defp valid_request?(digest, secret, conn) do
    hmac = :crypto.hmac(:sha, secret, conn.assigns.raw_body) |> Base.encode16(case: :lower)
    if Plug.Crypto.secure_compare(digest, hmac), do: {:ok}, else: {:error}
  end
end

Now we can create a Router and test out our implementation.

defmodule MyApp.Router do
  use Plug.Router

  plug(Plug.Logger)
  plug(Plug.Parsers,
    parsers: [:json],
    body_reader: {MyApp.Plugs.CacheBodyReader, :read_body, []},
    json_decoder: Jason)
  plug(MyApp.Plugs.GithubAuthentication)
  plug(:match)
  plug(:dispatch)

  post "events" do
    send_resp(conn, 200, "Successful Event!")
  end
end

defmodule MyApp.Router do
  use Plug.Router

  plug(Plug.Logger)
  plug(Plug.Parsers,
    parsers: [:json],
    body_reader: {MyApp.Plugs.CacheBodyReader, :read_body, []},
    json_decoder: Jason)
  plug(MyApp.Plugs.GithubAuthentication)
  plug(:match)
  plug(:dispatch)

  post "events" do
    send_resp(conn, 200, "Successful Event!")
  end
end

The ordering of the plugs becomes important, remember that we want the parsed body available when we do the authentication so we need to put the Parsers plug above the GithubAuthentication plug. We need to add the body_reader: {MyApp.Plugs.CacheBodyReader, :read_body, []}, line to ensure that the raw body is also available when we're trying to authenticate. Finally, we'll add an endpoint to test the events and we should be good to go.

Let's try it out. I'm going to use ngrok to expose a url GitHub can reach and then send over an event to ensure everything works. Then I'm going to change the secret in the application to "not_the_secret" and the response should be a 401.

Session Status                online
Session Expires               7 hours, 40 minutes
Version                       2.3.34
Region                        United States (us)
Web Interface                 http://127.0.0.1:4040
Forwarding                    http://9f3e1658.ngrok.io -> http://localhost:4001
Forwarding                    https://9f3e1658.ngrok.io -> http://localhost:4001
Connections                   ttl     opn     rt1     rt5     p50     p90
                              2       0       0.00    0.00    0.19    0.23
HTTP Requests
-------------
POST /events                  200 OK
POST /events                  401 Unauthorized

Session Status                online
Session Expires               7 hours, 40 minutes
Version                       2.3.34
Region                        United States (us)
Web Interface                 http://127.0.0.1:4040
Forwarding                    http://9f3e1658.ngrok.io -> http://localhost:4001
Forwarding                    https://9f3e1658.ngrok.io -> http://localhost:4001
Connections                   ttl     opn     rt1     rt5     p50     p90
                              2       0       0.00    0.00    0.19    0.23
HTTP Requests
-------------
POST /events                  200 OK
POST /events                  401 Unauthorized

We can look at those events in GitHub too.

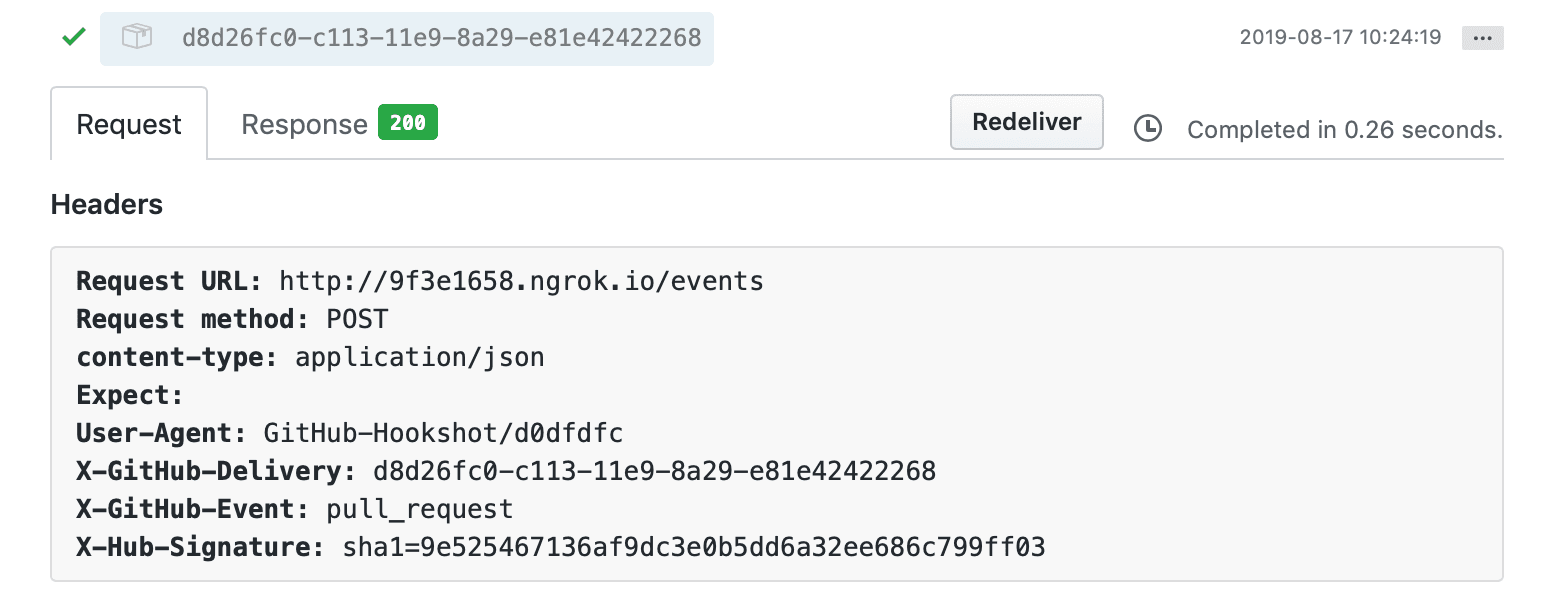

successful_event

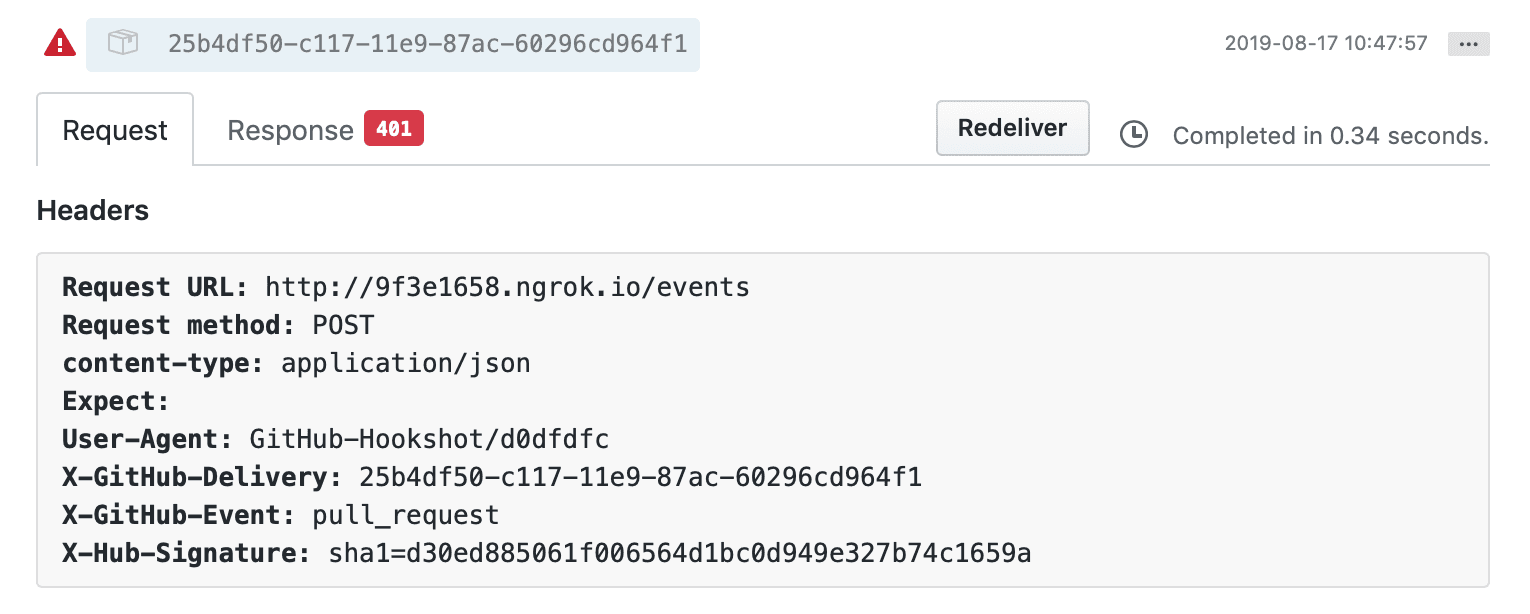

unauthorized_event

We successfully added a plug to authenticate the GitHub Webhooks API! I'm super excited to keep working on this project and I hope that I'll have more to share in the future!
